Material number 493379

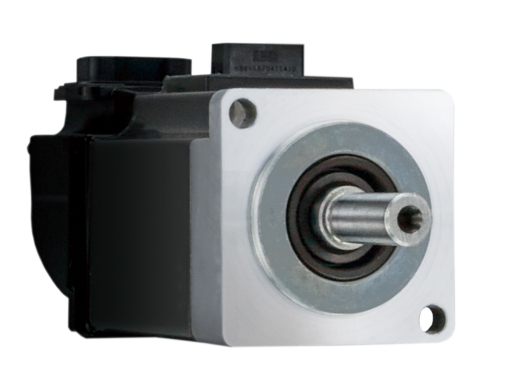

Servo motor; HG Series; Power 400 W; Torque 1,3 Nm, max. 3,8 Nm; Keyway
| Series | MELSERVO-JET |
|---|---|
| Type | HG-KNS |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 0,4 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 1,3 |
| Maximum Torque (Nm) | 3,8 |
| Rated Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 0,375 |
| Brake | NO |
| Shaft Type | KEYWAY |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4194304 |
| Maximum Speed (rpm) | 6000 |
| Protection Class | IP65 |
| Encoder Type | 22-BIT |
| Depth (mm) | 128,3 |
|---|---|
| Weight (kg) | 1,4 |
| Width (mm) | 60 |
| Height (mm) | 76 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 110 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 12 |
| Wood (g) | 0 |
| Other paper (g) | 36 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 119313-12-1, 3147-75-9 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
