Explore Mitsubishi Electric Products

    492287-HG-KNS13

    492287 - HG-KNS13

    Material number 492287

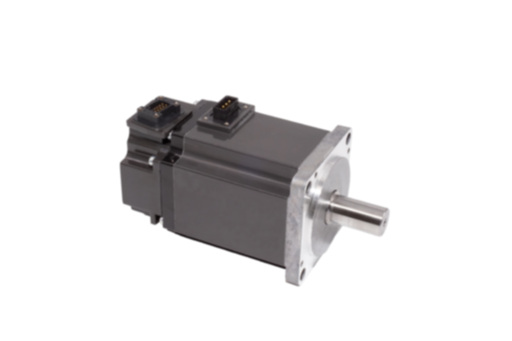

    Servo motor; HG Series; Power 100 W; Torque 0,32 Nm, max. 0,95 Nm

    Request for Quote Add to List
    FA-SERVO-MOTION: SERVO MOTOR
    Series MELSERVO-JET
    Type HG-KNS
    Power Supply (V) 200
    Rated Capacity (kW) 0,1
    Inertia LOW INERTIA
    Rated Torque (Nm) 0,32
    Maximum Torque (Nm) 0,95
    Rated Speed (rpm) 3000
    Inertia (kg*cm2) 0,0783
    Brake NO
    Shaft Type STRAIGHT SHAFT
    Current Type AC
    Encoder Resolution (p/rev) 4194304
    Maximum Speed (rpm) 6000
    Protection Class IP65
    Encoder Type 22-BIT
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 107,4
    Weight (kg) 0,54
    Width (mm) 46
    Height (mm) 59
    CONFORMITY
    CE COMPLIANT
    EAC COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 60
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 7
    Wood (g) 0
    Other paper (g) 36
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
