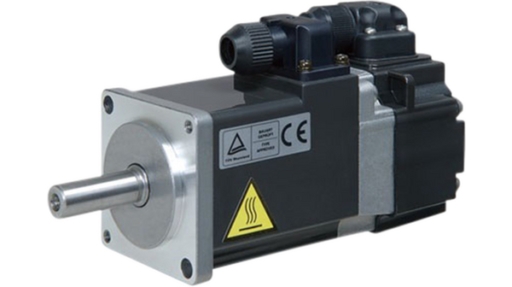

    282631-HG-KN13J

    282631 - HG-KN13J

    Material number 282631

    Servomotor HG-KN, 100W; Torque 0.32 Nm, max. torque 0.95 Nm

    Request for Quote Add to List
    FA-SERVO-MOTION: SERVO MOTOR
    Series MELSERVO-JE
    Type HG-KN
    Power Supply (V) 200
    Rated Capacity (kW) 0,1
    Inertia LOW INERTIA
    Rated Torque (Nm) 0,32
    Maximum Torque (Nm) 0,95
    Rated Speed (rpm) 3000
    Inertia (kg*cm2) 0,0783
    Brake NO
    Shaft Type STRAIGHT SHAFT
    Current Type AC
    Encoder Resolution (p/rev) 131072
    Maximum Speed (rpm) 5000
    Protection Class IP65
    Encoder Type 17-BIT
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 114
    Weight (kg) 0,57
    Width (mm) 43
    Height (mm) 40
    CONFORMITY
    CE COMPLIANT
    EAC COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 90
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 22
    Wood (g) 0
    Other paper (g) 35
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
