Material number 261452

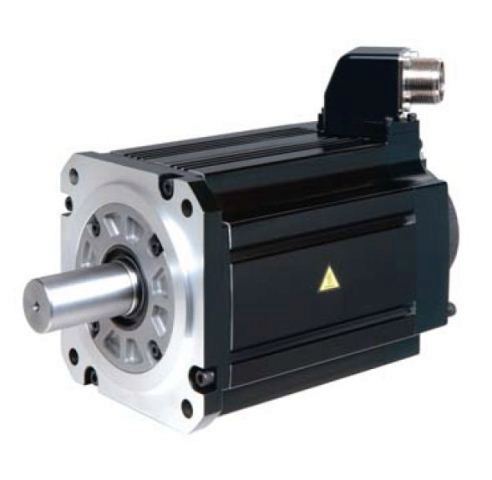

Servomotor HG Series, Power 7 kW; Torque 22.3 Nm, Max. Torque 66.8 Nm , 400V
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-JR |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 7 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 22,3 |
| Maximum Torque (Nm) | 66,8 |
| Rated Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 43,3 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4194304 |
| Maximum Speed (rpm) | 5000 |
| Protection Class | IP67 |
| Encoder Type | 22-BIT |
| Depth (mm) | 342,5 |
|---|---|
| Weight (kg) | 29 |
| Width (mm) | 176 |
| Height (mm) | 251,3 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 1 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 2530 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 13,4 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
