Material number 261537

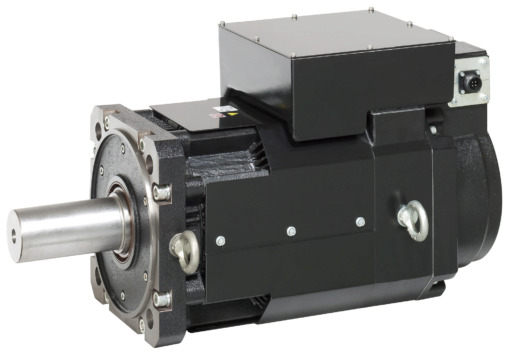

Servomotor HG Series, Power 11 kW; Torque 70 Nm, Max. 210 Nm , Brake, 400V
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-JR |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 11 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 70 |
| Maximum Torque (Nm) | 210 |
| Rated Speed (rpm) | 1500 |
| Inertia (kg*cm2) | 240 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4194304 |
| Maximum Speed (rpm) | 3000 |
| Protection Class | IP67 |
| Encoder Type | 22-BIT |
| Depth (mm) | 528 |
|---|---|
| Weight (kg) | 74 |
| Width (mm) | 220 |
| Height (mm) | 281,1 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 0 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 8 |
| Wood (g) | 0 |
| Other paper (g) | 35 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
