Material number 689095

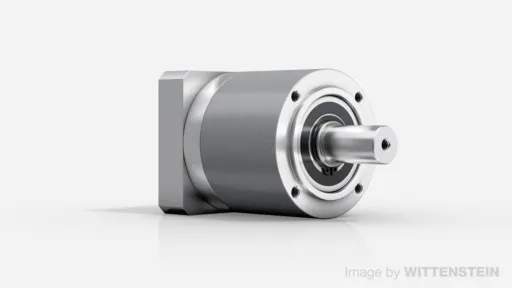

Gear CP; Ratio: 7; Backlash<=12; Key shaft; Motor flange: 90mm; Shaft: 16mm
| Gear Ratio | 7 |
|---|---|
| Stage | 1 |
| Maximum Torque (Nm) | 272 |
| Rated Speed (rpm) | 2800 |
| Maximum Speed (rpm) | 5500 |
| Protection Class | IP64 |
| Maximum Backlash | 12 ARCMIN |
| Shaft Type | KEY SHAFT |
| CE | NOT IN SCOPE |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | NOT IN SCOPE |
| Selling Status | Standard |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| Dangerous Goods Identifier | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
