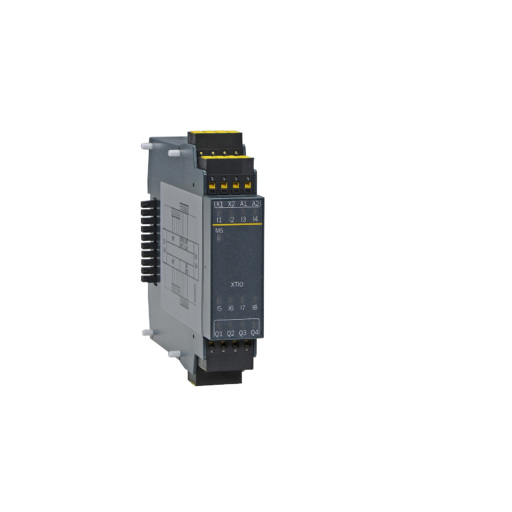

Material number 230060
PLC Safety Controller In-/ Output module; 8 safety inputs; 4 safety outputs
| Series | MELSEC-WS SERIES |
|---|---|
| Type | SAFETY I/O COMBINED MODULE |
| Power Supply (V) | 24 |
| Current Type | DC |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 4 |
| Rated Input Voltage (VDC) | 5/30 |
| Rated Load Voltage (VDC) | 15-30 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Wiring | SPRING CLAMP |
| Depth (mm) | 120,8 |
|---|---|
| Weight (kg) | 0,18 |
| Width (mm) | 22,5 |
| Height (mm) | 106,5 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 35 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 2,0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
