Material number 152969

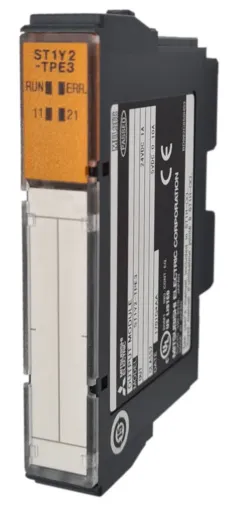

ST Series Outputmodule, 2 Outputs Transistor, 1,0A
| Series | ST SERIES |
|---|---|
| Type | TRANSISTOR OUTPUT (SOURCE) |
| Integrated Digital Outputs | 2 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Rated Load Voltage (VDC) | 24 |
| Wiring | SPRING/SCREW |
| Int. Current Consumption (A) | 0,095 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | NON-COMPLIANT |
| Shipping Approvals | ABS,BV,DNV,LR,NK,RINA |
| Width (mm) | 12,6 |
|---|---|
| Height (mm) | 75,5 |
| Depth (mm) | 55,4 |
| Weight (kg) | 0,03 |
| Discontinued (EOL) | 21.06.2021 |
|---|---|
| Last Time Buy (LTB) | 28.01.2022 |
| End of Service (EOS) | 28.01.2029 |
| Predecessor | 68899 |
| Successor | 473227 |
| Selling Status | Standard |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| Dangerous Goods Identifier | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
