Material number 152970

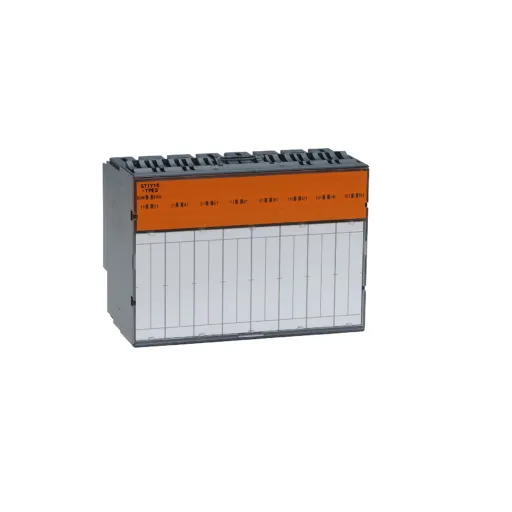

ST Series Outputmodule, 16 Outputs Transistor, 1,0A
| Series | ST SERIES |
|---|---|
| Type | TRANSISTOR OUTPUT (SOURCE) |
| Integrated Digital Outputs | 16 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Rated Load Voltage (VDC) | 24 |
| Wiring | SPRING/SCREW |
| Int. Current Consumption (A) | 0,16 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | NON-COMPLIANT |
| Shipping Approvals | ABS,BV,DNV,LR,NK,RINA |
| Width (mm) | 100,8 |
|---|---|
| Height (mm) | 72 |
| Depth (mm) | 55,4 |
| Weight (kg) | 0,11 |
| Discontinued (EOL) | 21.06.2021 |
|---|---|
| Last Time Buy (LTB) | 28.01.2022 |
| End of Service (EOS) | 28.01.2029 |
| Predecessor | 63080 |
| Selling Status | Standard |
|---|
| Cardboard (g) | 80 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 3 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 108-78-1, 119313-12-1 |
| Dangerous Goods Class | NO |
| Dangerous Goods Identifier | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
