Material number 152975

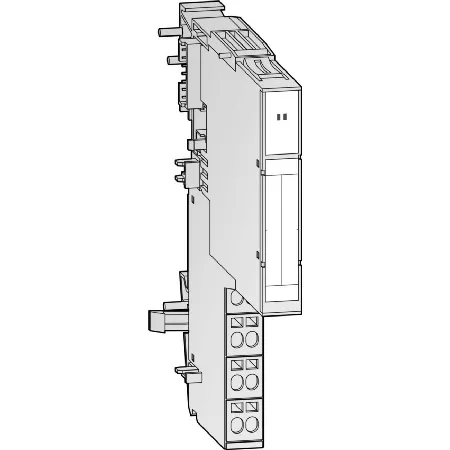

ST Series Analogoutputmodule, 2 Outputs, Voltage
| Series | ST SERIES |
|---|---|
| Type | ANALOG OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 2 |
| Integrated Analogue Outputs | 2 |
| Output Voltage Range (V) | -10-10; 0-10; 0-5; 1-5 |
| Wiring | SPRING/SCREW CLAMP |
| Int. Current Consumption (A) | 0,095 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | NON-COMPLIANT |
| Shipping Approvals | ABS,BV,DNV,LR,NK,RINA |
| Width (mm) | 12,6 |
|---|---|
| Height (mm) | 77,6 |
| Depth (mm) | 55,4 |
| Weight (kg) | 0,04 |
| Discontinued (EOL) | 21.06.2021 |
|---|---|
| Last Time Buy (LTB) | 28.01.2022 |
| End of Service (EOS) | 28.01.2029 |
| Predecessor | 68912 |
| Successor | 473231 |
| Selling Status | Standard |
|---|
| Cardboard (g) | 10 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 2 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 80-05-7, 119313-12-1, 7439-92-1 |
| Dangerous Goods Class | NO |
| Dangerous Goods Identifier | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
