Material number 279549

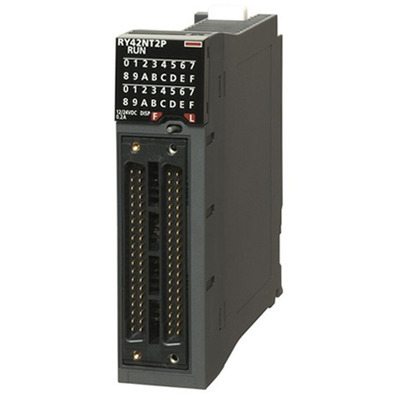

PLC iQ-R Series; Transistor (sink) output module, 64 point
| Series | MELSEC IQ-R SERIES |
|---|---|
| Type | TRANSISTOR OUTPUT (SINK) |
| Power Supply (V) | 12/24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 64 |
| Integrated Digital Outputs | 64 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Rated Load Voltage (VDC) | 12-24 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,25 |
| Depth (mm) | 131 |
|---|---|
| Weight (kg) | 0,13 |
| Width (mm) | 27,8 |
| Height (mm) | 98 (106) |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 45 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 108-78-1, 7439-92-1, 119313-12-1, 75980-60-8 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
