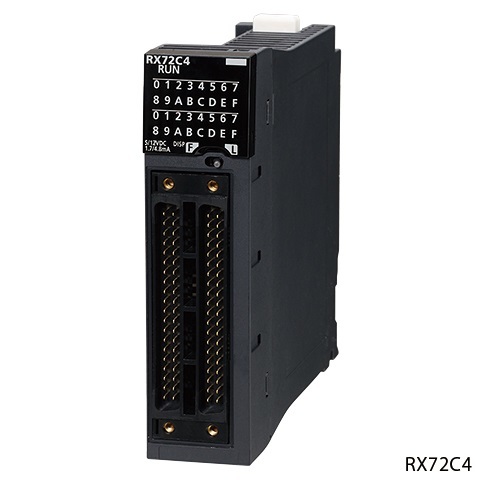

Material number 339031
Input module, 64 inputs, 5-12 V DC input (1,7/4,8mA), positive/negative common
| Series | MELSEC IQ-R SERIES |
|---|---|
| Type | DC INPUT |
| Current Type | DC |
| Occupied I/O Points on PLC | 64 |
| Integrated Digital Inputs | 64 |
| Rated Input Voltage (VDC) | 5/12 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,15 |
| Depth (mm) | 110 |
|---|---|
| Weight (kg) | 0,14 |
| Width (mm) | 27,8 |
| Height (mm) | 106 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 45 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 3 |
| Wood (g) | 0 |
| Other paper (g) | 26 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
