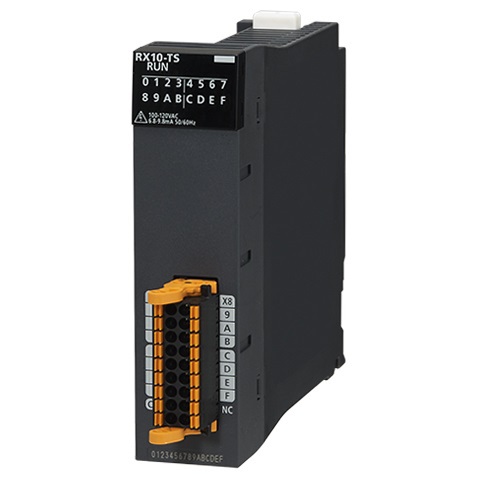

    339045-RX10-TS

    339045 - RX10-TS

    Material number 339045

    PLC iQ-R Series; 100-120V AC input module, 16 point, Spring clamp terminal

    Request for Quote Add to List
    FA-MOD PLC: DIGITAL INPUT MODULE
    Series MELSEC IQ-R SERIES
    Type AC INPUT
    Power Supply (V) 100-120
    Current Type AC
    Occupied I/O Points on PLC 16
    Integrated Digital Inputs 16
    Rated Input Voltage (VAC) 100-120
    Wiring SPRING CLAMP
    Int. Current Consumption (A) 0,11
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 129
    Weight (kg) 0,14
    Width (mm) 27,8
    Height (mm) 106
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 45
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 3
    Wood (g) 0
    Other paper (g) 26
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 71868-10-5, 108-78-1, 119313-12-1, 7439-92-1, 80-43-3, 75980-60-8
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
