Material number 279546

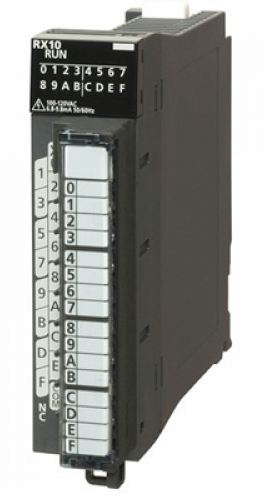

PLC iQ-R Series; AC input module, 16 point
| Series | MELSEC IQ-R SERIES |
|---|---|
| Type | AC INPUT |
| Power Supply (V) | 100-120 |
| Current Type | AC |
| Occupied I/O Points on PLC | 16 |
| Integrated Digital Inputs | 16 |
| Rated Input Voltage (VAC) | 100-120 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,11 |
| Depth (mm) | 131 |
|---|---|
| Weight (kg) | 0,18 |
| Width (mm) | 27,8 |
| Height (mm) | 98 (106) |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 45 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 3 |
| Wood (g) | 0 |
| Other paper (g) | 26 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 108-78-1, 71868-10-5, 7439-92-1, 75980-60-8, 80-43-3, 119313-12-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
