Material number 285507

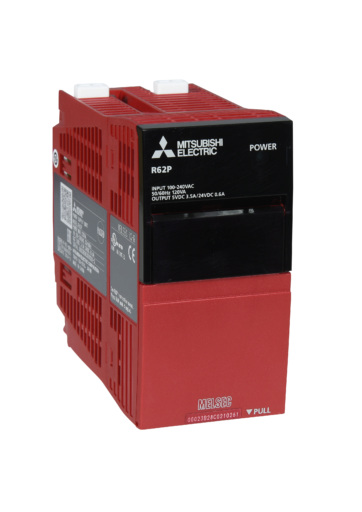

PLC iQ-R Series Power supply, Input: 100-240V, output: DC5V/3.5A, DC24V/0.6A
| Series | MELSEC IQ-R SERIES |
|---|---|
| Type | POWER SUPPLY |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Max Input Apparent Power (VA) | 120 |
| Output Current 5V (A) | 3,5 |
| Output Current 24V (A) | 0,6 |
| Depth (mm) | 110 |
|---|---|
| Weight (kg) | 0,45 |
| Width (mm) | 54,6 |
| Height (mm) | 106 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 55 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 7 |
| Wood (g) | 0 |
| Other paper (g) | 36 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 19438-60-9 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
