Material number 290204

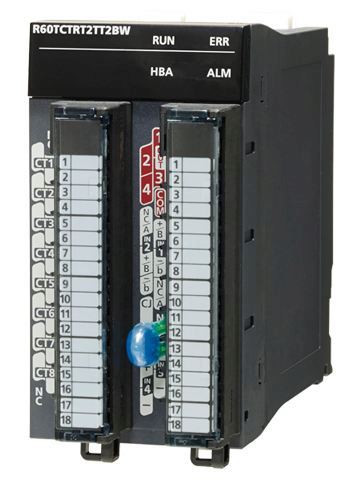

PLC iQ-R Series Temperature input 2-channel multi-input,2-channel thermocouple
| Series | MELSEC IQ-R SERIES |
|---|---|
| Type | TEMPERATURE CONTROL |
| Occupied I/O Points on PLC | 32 |
| Integrated Analogue Inputs | 4 |
| Input Type | THERMOCOUPLE,RTD |
| Applicable RTD Type | JPT100, PT100 |
| Applicable Thermocouple Type | W5RE/W26RE, S, R, N, PLII, B, E, J, K, L, U, T |
| Int. Current Consumption (A) | 0,34 |
| Depth (mm) | 110 |
|---|---|
| Weight (kg) | 0,34 |
| Width (mm) | 56 |
| Height (mm) | 98 (106) |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 45 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 7 |
| Wood (g) | 0 |
| Other paper (g) | 26 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
