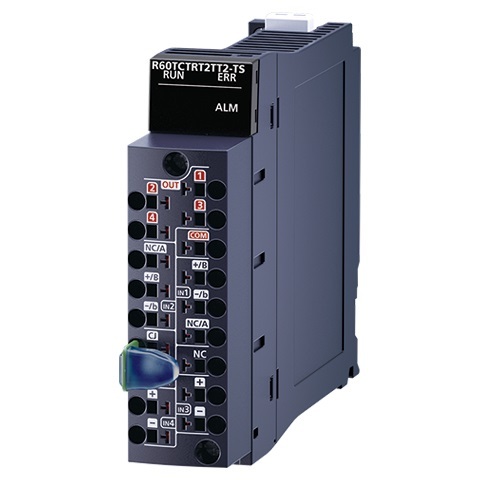

Material number 605221
PLC iQ-R Series Temperature Control Module; 4 channels; spring clamp
| Series | MELSEC IQ-R SERIES |
|---|---|
| Type | TEMPERATURE CONTROL |
| Occupied I/O Points on PLC | 16 |
| Integrated Analogue Inputs | 4 |
| Input Type | THERMOCOUPLE,RTD |
| Applicable RTD Type | JPT100, PT100 |
| Applicable Thermocouple Type | W5RE/W26RE, U, T, S, R, PLII, N, L, K, J, E, B |
| Int. Current Consumption (A) | 0,28A |
| Depth (mm) | 141 |
|---|---|
| Weight (kg) | 0,24 |
| Width (mm) | 27,8 |
| Height (mm) | 106 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 36,0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 75,0 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 3,0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
