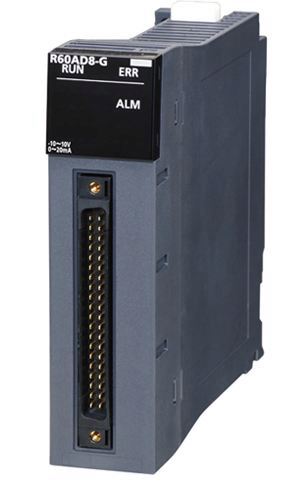

Material number 285502
PLC iQ-R Series Analog Input, 8ch, Channel isolated analog-digital conversion
| Series | MELSEC IQ-R SERIES |
|---|---|
| Type | CHANNEL ISOLATED ANALOG INPUT |
| Occupied I/O Points on PLC | 32 |
| Integrated Analogue Inputs | 8 |
| Input Voltage Range (V) | -10-10; 0-10; 0-5; 1-5 |
| Input Current Range (mA) | 0-20; 4-20 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,33 |
| Depth (mm) | 110 |
|---|---|
| Weight (kg) | 0,19 |
| Width (mm) | 27,8 |
| Height (mm) | 98 (106) |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 45 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 3 |
| Wood (g) | 0 |
| Other paper (g) | 25 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 2451-62-9, 80-05-7, 7439-92-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
