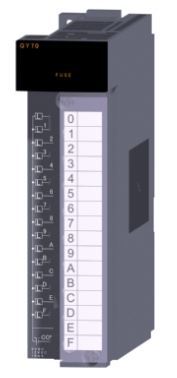

Material number 136404
16 point transistor, 5-12V DC, 16mA/point, 256mA/common, sink, 16 points/common
| Series | MELSEC-Q SERIES |
|---|---|
| Type | TRANSISTOR OUTPUT (SINK) |
| Power Supply (V) | 12-24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 16 |
| Integrated Digital Outputs | 16 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Rated Load Voltage (VDC) | 5-12 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,095 |
| Depth (mm) | 90 |
|---|---|
| Weight (kg) | 0,14 |
| Width (mm) | 27,4 |
| Height (mm) | 98 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
