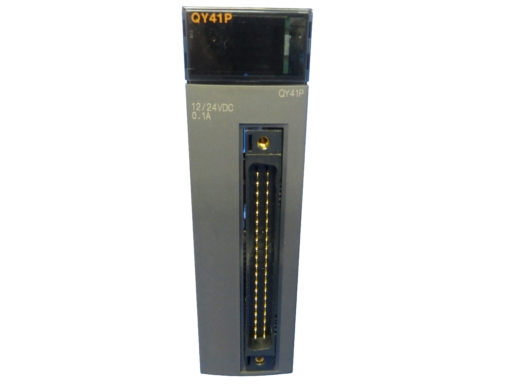

Material number 132576
32 point transistor, 12-24V DC, 0.1A/point, 2A/common, sink, 32 points/common
| Series | MELSEC-Q SERIES |
|---|---|
| Type | TRANSISTOR OUTPUT (SINK) |
| Power Supply (V) | 12-24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 32 |
| Integrated Digital Outputs | 32 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Rated Load Voltage (VDC) | 12/24 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,105 |
| Depth (mm) | 90 |
|---|---|
| Weight (kg) | 0,117 |
| Width (mm) | 27,4 |
| Height (mm) | 98 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 40 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 3147-75-9 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
