    221841-QY10-TS

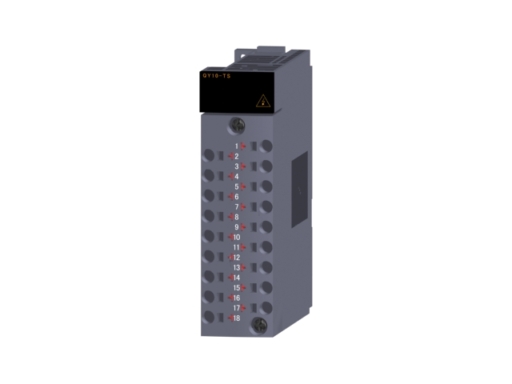

    221841 - QY10-TS

    Material number 221841

    PLC Q Series Output module; 240VAC; 16 outputs; relay; spring clamp terminal

    Request for Quote Add to List
    FA-MOD PLC: DIGITAL OUTPUT MODULE
    Series MELSEC-Q SERIES
    Type RELAY OUTPUT
    Occupied I/O Points on PLC 16
    Integrated Digital Outputs 16
    Output Type RELAY
    Rated Load Voltage (VAC) 240
    Rated Load Voltage (VDC) 24
    Wiring SCREW
    Int. Current Consumption (A) 0,43
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 90
    Weight (kg) 0,162
    Width (mm) 27,4
    Height (mm) 98
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 40
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 2
    Wood (g) 0
    Other paper (g) 1
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 3147-75-9, 7439-92-1, 71868-10-5
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
