Material number 229239

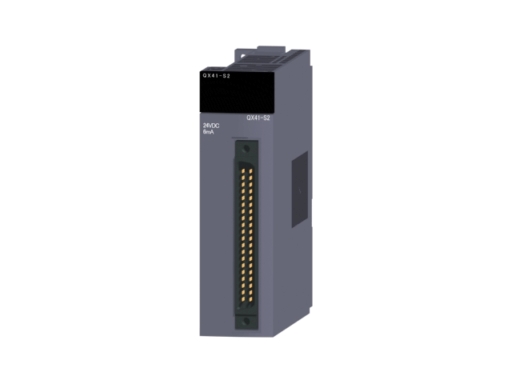

PLC Q Series Input module; 24 V DC; 32 inputs; sink; 6 mA rated input current
| Series | MELSEC-Q SERIES |
|---|---|
| Type | DC INPUT (PLUS COMMON) |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 32 |
| Integrated Digital Inputs | 32 |
| Rated Input Voltage (VDC) | 24 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,075 |
| Depth (mm) | 90 |
|---|---|
| Weight (kg) | 0,126 |
| Width (mm) | 27,4 |
| Height (mm) | 98 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 40 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 2 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 119313-12-1, 108-78-1, 7439-92-1, 96-13-9, 3147-75-9 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
