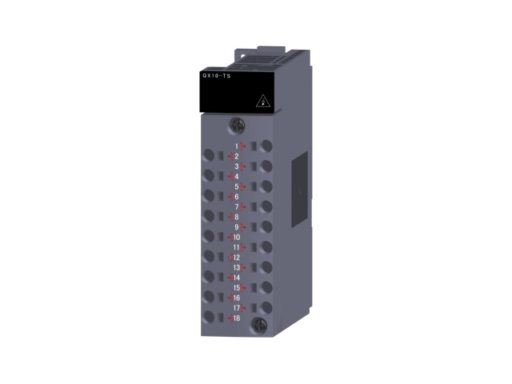

    221838-QX10-TS

    221838 - QX10-TS

    Material number 221838

    PLC Q Series Input module; 100-120V AC; 16 inputs; spring clamp terminal

    Request for Quote Add to List
    FA-MOD PLC: DIGITAL INPUT MODULE
    Series MELSEC-Q SERIES
    Type AC INPUT
    Power Supply (V) 100-120
    Current Type AC
    Occupied I/O Points on PLC 16
    Integrated Digital Inputs 16
    Rated Input Voltage (VAC) 100-120
    Wiring SPRING CLAMP
    Int. Current Consumption (A) 0,05
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 90
    Weight (kg) 0,17
    Width (mm) 27,4
    Height (mm) 98
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 40
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 2
    Wood (g) 0
    Other paper (g) 1
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 3147-75-9, 7439-92-1, 71868-10-5
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
