Material number 297646

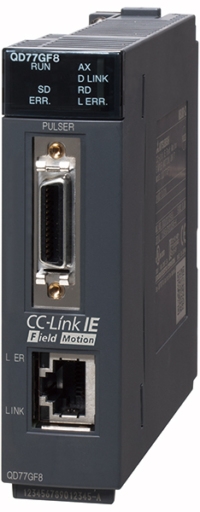

Q-Series Simple Motion Module for CC-Link IE Field Network; 8 Axes
| Type | SIMPLE MOTION MODULE |
|---|---|
| Command Interface | CC-LINK IE FIELD NETWORK |
| Number of Axes | 8 |
| Program Capacity | 600 |
| Ethernet Port | 1 |
| Inputs | 4 |
| Program Capacity Unit | POSITIONING DATA / AXIS |
| Series | MELSEC-Q SERIES |
| Depth (mm) | 115 |
|---|---|
| Weight (kg) | 0,26 |
| Width (mm) | 27,4 |
| Height (mm) | 98 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 55 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 22,76 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
