Material number 248394

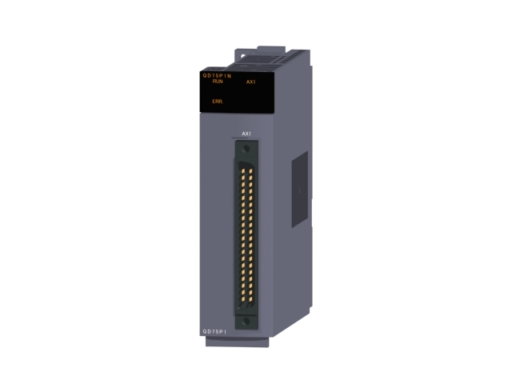

PLC Q series;positioning module 4-axis;differential output
| Series | MELSEC-Q SERIES |
|---|---|
| Type | DIFFERENTIAL DRIVE OUTPUT |
| Number of Axes | 4 |
| Int. Current Consumption (A) | 0,66 |
| Depth (mm) | 90 |
|---|---|
| Weight (kg) | 0,16 |
| Width (mm) | 27,4 |
| Height (mm) | 98 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 35 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 13 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 13560-89-9, 71868-10-5, 7439-92-1, 80-43-3, 96-13-9, 3147-75-9 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
