Material number 216482

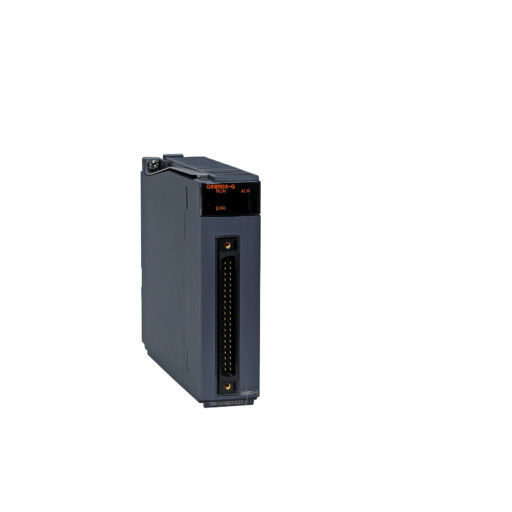

PLC Q Series Temperature input module; 8 channel; Pt100
| Series | MELSEC-Q SERIES |
|---|---|
| Type | TEMPERATURE INPUT |
| Occupied I/O Points on PLC | 16 |
| Integrated Analogue Inputs | 8 |
| Input Type | RTD |
| Applicable RTD Type | JPT100, NI100, PT100 |
| Int. Current Consumption (A) | 0,54 |
| Depth (mm) | 130 |
|---|---|
| Weight (kg) | 0,2 |
| Width (mm) | 27,4 |
| Height (mm) | 102 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 55 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 18 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 108-78-1, 7439-92-1, 80-05-7, 3147-75-9 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
