    204675-Q68AD-G

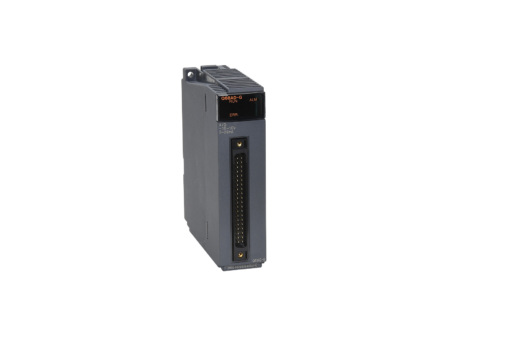

    204675 - Q68AD-G

    Material number 204675

    PLC Q Series 8 channel analog input module voltage/current, isolated channel

    Request for Quote Add to List
    FA-MOD PLC: ANALOGUE I/O MODULE
    Series MELSEC-Q SERIES
    Type ANALOG INPUT
    Occupied I/O Points on PLC 16
    Integrated Analogue Inputs 8
    Input Voltage Range (V) -10-10; 0-10; 0-5; 1-5
    Input Current Range (mA) 0-20; 4-20
    Wiring SCREW
    Int. Current Consumption (A) 0,38
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 136
    Weight (kg) 0,16
    Width (mm) 27,4
    Height (mm) 102
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 70
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 2
    Wood (g) 0
    Other paper (g) 11
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 108-78-1, 119313-12-1, 7439-92-1, 80-05-7, 96-13-9, 3147-75-9
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
