Material number 255458

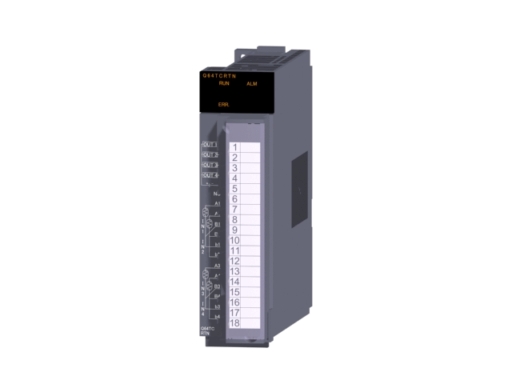

PLC Q Series Temperature control unit 4 channel Pt100; broken wire detection
| Series | MELSEC-Q SERIES |
|---|---|
| Type | TEMPERATURE CONTROL |
| Occupied I/O Points on PLC | 32 |
| Integrated Analogue Inputs | 4 |
| Input Type | RTD |
| Applicable RTD Type | JPT100, PT100 |
| Int. Current Consumption (A) | 0,33 |
| Depth (mm) | 112 |
|---|---|
| Weight (kg) | 0,3 |
| Width (mm) | 55 |
| Height (mm) | 98 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 75 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 33 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 1317-36-8, 2451-62-9, 7439-92-1, 3147-75-9, 1303-86-2 |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
