    229238-Q64AD2DA

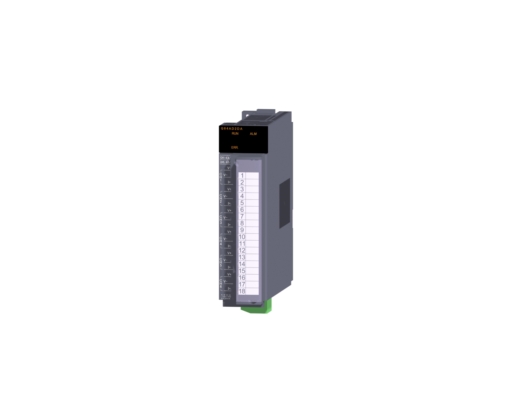

    229238 - Q64AD2DA

    Material number 229238

    PLC Q Series analog module; 4in-,2outputs; current and voltage 0/4..20mA

    Request for Quote Add to List
    FA-MOD PLC: ANALOGUE I/O MODULE
    Series MELSEC-Q SERIES
    Type ANALOG INPUT/OUTPUT COMBINED
    Power Supply (V) 24
    Current Type DC
    Occupied I/O Points on PLC 16
    Integrated Analogue Inputs 4
    Integrated Analogue Outputs 2
    Input Voltage Range (V) -10-10; 0-10; 0-5; 1-5
    Input Current Range (mA) 0-20; 4-20
    Output Voltage Range (V) -10-10; 0-5; 1-5
    Output Current Range (mA) 0-20; 4-20
    Wiring SCREW
    Int. Current Consumption (A) 0,17
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 112
    Weight (kg) 0,23
    Width (mm) 27,4
    Height (mm) 98
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 55
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 22
    Wood (g) 0
    Other paper (g) 1
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 71868-10-5, 7439-92-1, 80-05-7, 80-43-3, 96-13-9, 3147-75-9
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
