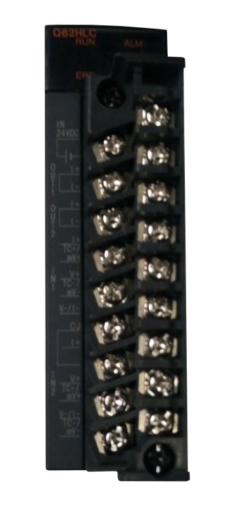

Material number 200693
PLC Q Series Loop control unit 2 channel R,K,J,T/current/voltage 2analog outputs
| Series | MELSEC-Q SERIES |
|---|---|
| Type | LOOP CONTROL |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 16 |
| Integrated Analogue Inputs | 2 |
| Input Type | THERMOCOUPLE |
| Applicable Thermocouple Type | E, B, J, K, N, R, S, T |
| Int. Current Consumption (A) | 0,27 |
| Depth (mm) | 112 |
|---|---|
| Weight (kg) | 0,25 |
| Width (mm) | 27,4 |
| Height (mm) | 98 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 55 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 17 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 127-19-5, 7439-92-1, 1303-86-2, 1317-36-8, 80-05-7, 3147-75-9 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
