Material number 190235

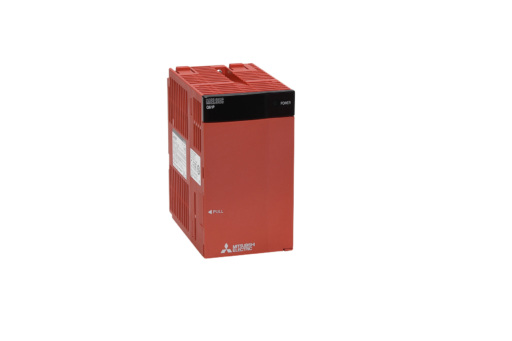

PLC Q Series Power supply 100-240 V AC input, 5 V DC 6 A output
| Series | MELSEC-Q SERIES |
|---|---|
| Type | POWER SUPPLY |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Max Input Apparent Power (VA) | 105 |
| Output Current 5V (A) | 6 |
| Depth (mm) | 90 |
|---|---|
| Weight (kg) | 0,3 |
| Width (mm) | 55,2 |
| Height (mm) | 98 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 45 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 30 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 108-78-1, 119344-86-4, 3147-75-9, 71868-10-5, 79-94-7, 80-05-7 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
