    157071-Q25PRHCPU

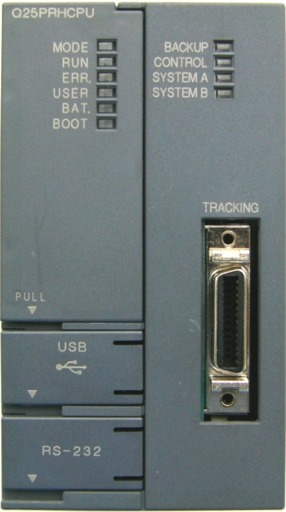

    157071 - Q25PRHCPU

    Material number 157071

    PLC Q Series CPU module Redundant Process-CPU; 4096 I/O; 34 ns/com.; 252k steps

    Request for Quote Add to List
    FA-MOD PLC: CPU MODULE
    Series MELSEC-Q SERIES
    Type REDUNDANT CPU
    Program Memory 252K
    Program Memory Unit STEPS
    Local I/O Points 4096
    Local + Remote I/O Points 8192
    Cycle Time LD (ns) 34
    Cycle Time MOV (ns) 102
    USB 1
    Ethernet Port N/A
    RS-232 1
    Buffer Battery YES
    Int. Current Consumption (A) 0,89
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 89,3
    Weight (kg) 0,3
    Width (mm) 52,2
    Height (mm) 98
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA
    EAC COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 117
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 2
    Wood (g) 0
    Other paper (g) 1
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 7439-92-1, 12060-00-3, 2451-62-9, 110-71-4
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
