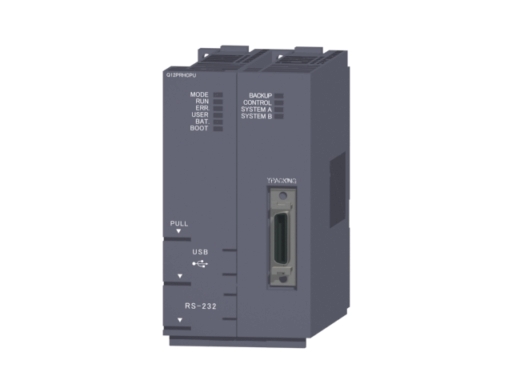

    283212-Q12PRHCPU(C)

    283212 - Q12PRHCPU(C)

    Material number 283212

    PLC Q Series CPU module Redundant Process-CPU; 4096 I/O; 34 ns/com.; 124k(coated

    Request for Quote Add to List
    FA-MOD PLC: CPU MODULE
    Series MELSEC-Q SERIES
    Type REDUNDANT CPU
    Program Memory 124K
    Program Memory Unit STEPS
    Local I/O Points 4096
    Local + Remote I/O Points 8192
    Cycle Time LD (ns) 34
    Cycle Time MOV (ns) 102
    USB 1
    Ethernet Port N/A
    RS-232 1
    Buffer Battery YES
    Int. Current Consumption (A) 0,89
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 89,3
    Weight (kg) 0,3
    Width (mm) 52,2
    Height (mm) 98
    CONFORMITY
    CE COMPLIANT
    EAC COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    ENVIRONMENTAL
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
