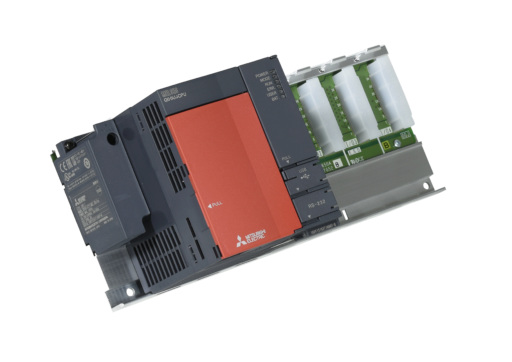

Material number 221575
PLC Q Series iQ CPU module; 256 I/O; 120 ns/com.; 10k steps;power supply
| Series | MELSEC-Q SERIES |
|---|---|
| Type | UNIVERSAL MODEL QCPU |
| Program Memory | 10K |
| Program Memory Unit | STEPS |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 8192 |
| Cycle Time LD (ns) | 120 |
| Cycle Time MOV (ns) | 240 |
| USB | 1 |
| RS-232 | 1 |
| Buffer Battery | YES |
| Int. Current Consumption (A) | 0,37 |
| Depth (mm) | 98 |
|---|---|
| Weight (kg) | 0,7 |
| Width (mm) | 245 |
| Height (mm) | 98 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 460 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 11 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 108-78-1, 7439-92-1, 110-71-4, 119313-12-1, 12060-00-3, 80-05-7, 3147-75-9 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
