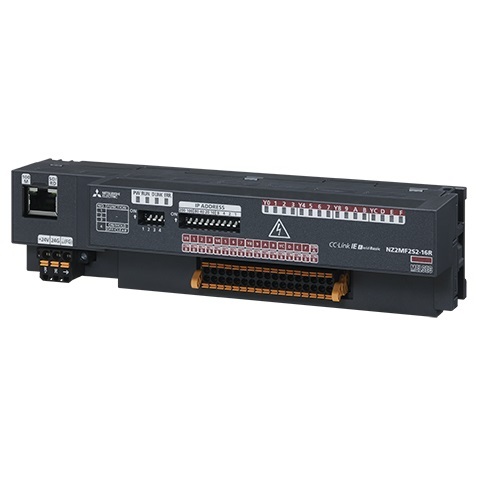

Material number 589595
Remote I/O, CC-Link IE Field Basic, 16 relay out., DC24V/AC240V 2A, spring clamp
| Series | CC-LINK IE FIELD NETWORK BASIC |
|---|---|
| Type | REMOTE RELAY OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 16 |
| Output Type | RELAY |
| Rated Load Voltage (VAC) | 240 |
| Rated Load Voltage (VDC) | 24 |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,153 |
| Depth (mm) | 68 |
|---|---|
| Weight (kg) | 0,30 |
| Width (mm) | 200 |
| Height (mm) | 50 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
