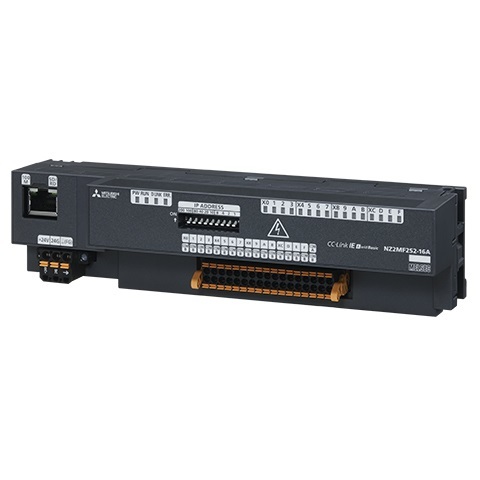

Material number 589594
Remote I/O, CC-Link IE Field Basic, 16 AC inputs, 100-120VAC, spring clamp
| Series | CC-LINK IE FIELD NETWORK BASIC |
|---|---|
| Type | REMOTE AC INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 16 |
| Rated Input Voltage (VAC) | 100-120 |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,064 |
| Depth (mm) | 68 |
|---|---|
| Weight (kg) | 0,26 |
| Width (mm) | 200 |
| Height (mm) | 50 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
