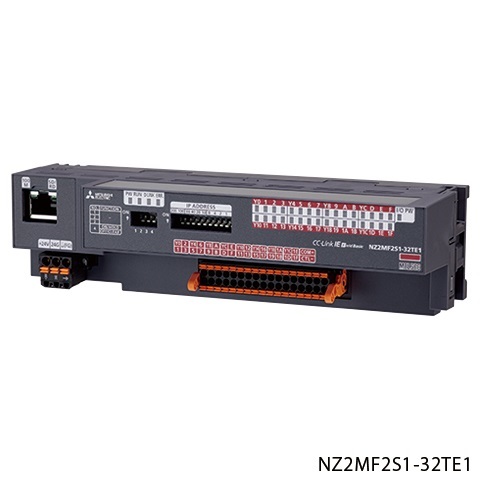

Material number 339026
PLC CC-L IE Field Basic, 32 Transitor Output, DC12V/24V(0.1A), Source, Spr.clamp
| Series | CC-LINK IE FIELD NETWORK BASIC |
|---|---|
| Type | REMOTE TRANSISTOR OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 32 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Rated Load Voltage (VDC) | 12-24 |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,1 |
| Depth (mm) | 68 |
|---|---|
| Weight (kg) | 0,25 |
| Width (mm) | 200 |
| Height (mm) | 50 |
| CE | COMPLIANT |
|---|---|
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 120 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 4 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
