Material number 676906

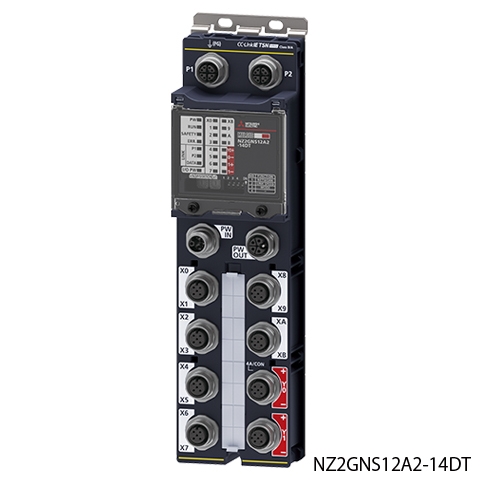

PLC Safety Remote I/O Module;CC-Link IE TSN;12 inp.neg.common source;spring;IP67
| Series | CC-LINK IE TSN |
|---|---|
| Type | SAFETY REMOTE I/O COMBINED M. |
| Power Supply (V) | 24 |
| Current Type | DC |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 24 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE + SINK |
| Wiring | M12 |
| Int. Current Consumption (A) | 0,26 |
| Depth (mm) | 49 |
|---|---|
| Weight (kg) | 0,52 |
| Width (mm) | 63 |
| Height (mm) | 238 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 180 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 71868-10-5, 7439-92-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
