Material number 600547

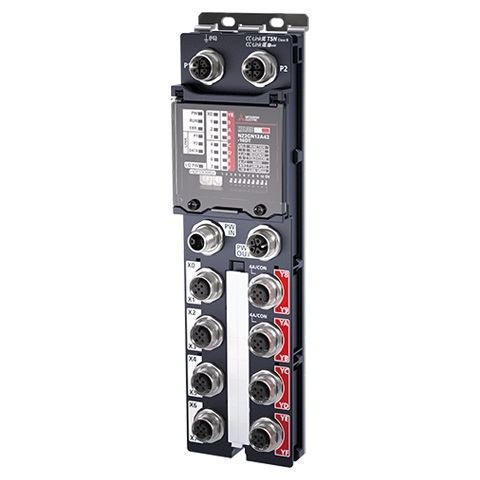

PLC Remote I/O Module; CC-Link IE TSN; 8 inputs+8 tran. outputs sink; IP67; M12
| Series | CC-LINK IE TSN |
|---|---|
| Type | REMOTE I/O COMBINED MODULE |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 8 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 12-24 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,16 |
| Depth (mm) | 37,5 |
|---|---|
| Weight (kg) | 0,42 |
| Width (mm) | 63 |
| Height (mm) | 238 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 177 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 4 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 540-97-6, 541-02-6, 7439-92-1, 75980-60-8, 556-67-2, 71868-10-5 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
