Material number 312909

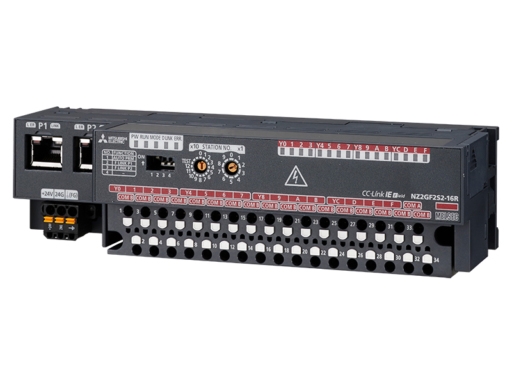

CC-Link IE field network remote IO, 16 Points, DC24V/2A, AC240V/2A, Spring
| Series | CC-LINK IE FIELD NETWORK |
|---|---|
| Type | REMOTE RELAY OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 16 |
| Output Type | RELAY |
| Rated Load Voltage (VAC) | 240 |
| Rated Load Voltage (VDC) | 24 |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,19 |
| Depth (mm) | 68 |
|---|---|
| Weight (kg) | 0,45 |
| Width (mm) | 200 |
| Height (mm) | 50 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 0 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 4 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 71868-10-5 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
