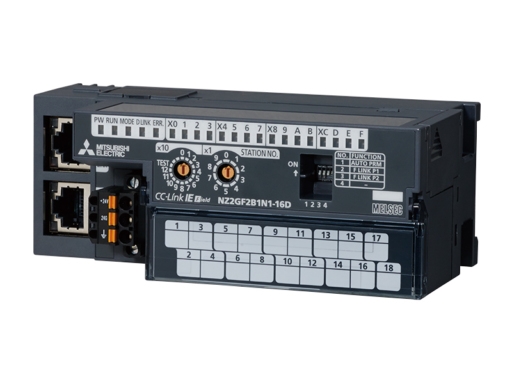

Material number 311383
PLC CC-Link IE Field I/O module;16 inputs;sink/source;1-wire
| Series | CC-LINK IE FIELD NETWORK |
|---|---|
| Type | REMOTE DC INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 16 |
| Rated Input Voltage (VDC) | 24 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,12 |
| Depth (mm) | 68 |
|---|---|
| Weight (kg) | 0,3 |
| Width (mm) | 133 |
| Height (mm) | 50 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 68 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 3 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 119313-12-1, 71868-10-5, 3147-75-9, 7439-92-1, 75980-60-8, 108-78-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
