Material number 312892

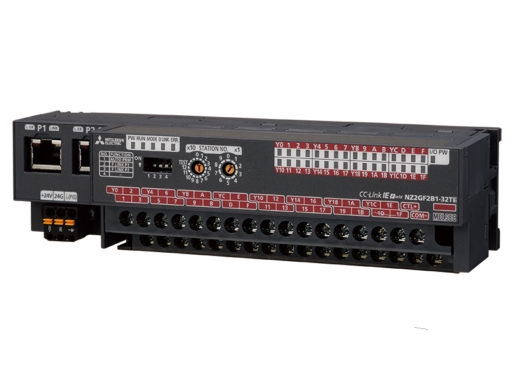

CC-Link IE field network remote IO, 32 Points Output Source
| Series | CC-LINK IE FIELD NETWORK |
|---|---|
| Type | REMOTE TRANSISTOR OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 32 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Rated Load Voltage (VDC) | 12/24 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,13 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | NON-COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| UKCA | COMPLIANT |
| Width (mm) | 200 |
|---|---|
| Height (mm) | 50 |
| Depth (mm) | 68 |
| Weight (kg) | 0,38 |
| Discontinued (EOL) | 06.02.2026 |
|---|---|
| Last Time Buy (LTB) | 30.05.2028 |
| End of Service (EOS) | 30.09.2035 |
| Successor | 481334 |
| Serial No. on the Box | QR1 |
| Selling Status | Standard |
|---|
| Cardboard (g) | 120 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 4 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 108-78-1, 115-86-6, 75980-60-8, 3147-75-9, 71868-10-5, 7439-92-1 |
| Dangerous Goods Class | NO |
| Dangerous Goods Identifier | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
