Material number 473225

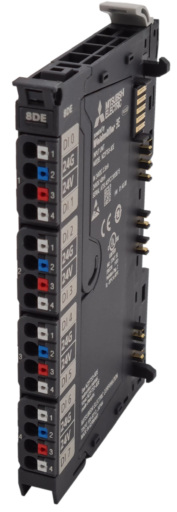

Digital Input Module; NZ2FT Series; 8 inputs; source; 24 VDC; spring clamp
| Series | NZ2FT SERIES |
|---|---|
| Type | DC INPUT (MINUS COMMON) |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 8 |
| Rated Input Voltage (VDC) | 24 |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,04 |
| Depth (mm) | 76 |
|---|---|
| Weight (kg) | 0,094 |
| Width (mm) | 11,5 |
| Height (mm) | 120 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | DNV GL, LR |
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 35 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 10 |
| Wood (g) | 0 |
| Other paper (g) | 14 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
