Material number 584217

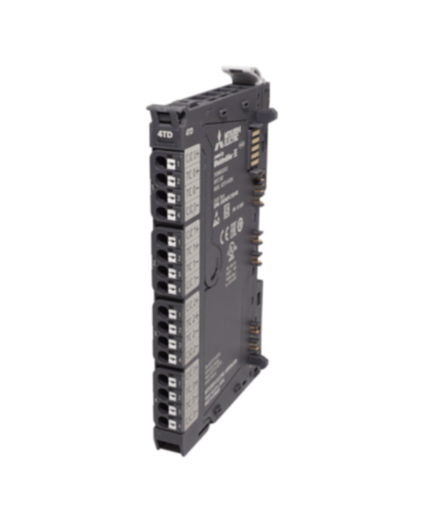

Temperature Input Module; NZ2FT Series; 4 chan; -200-2315°C;16 bits;thermocouple
| Series | NZ2FT SERIES |
|---|---|
| Type | TEMPERATURE INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Analogue Inputs | 4 |
| Input Type | THERMOCOUPLE |
| Applicable Thermocouple Type | U, T, S, R, N, MV, L, K, J, E, C, B |
| Int. Current Consumption (A) | 0,03 |
| Depth (mm) | 76 |
|---|---|
| Weight (kg) | 0,091 |
| Width (mm) | 11,5 |
| Height (mm) | 120 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0,0 |
|---|---|
| Others (g) | 0,0 |
| Styrofoam (g) | 0,0 |
| Cardboard (g) | 35,0 |
| Steel (g) | 0,0 |
| Glass (g) | 0,0 |
| Other plastic (g) | 6,0 |
| Wood (g) | 0,0 |
| Other paper (g) | 14,0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
