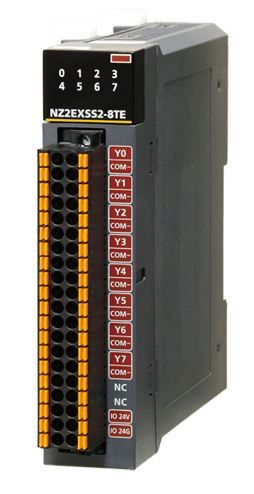

    289991-NZ2EXSS2-8TE

    289991 - NZ2EXSS2-8TE

    Material number 289991

    PLC CC-Link IE Field Safety Ext. Output module; 8/4 outputs sng/dbl wire; source

    Request for Quote Add to List
    FA-MOD PLC: DIGITAL OUTPUT MODULE
    Series CC-LINK IE FIELD NETWORK
    Type SAFETY REMOTE TRANSIST. OUTPUT
    Power Supply (V) 24
    Current Type DC
    Occupied Stations 1
    Integrated Digital Outputs 8
    Output Type TRANSISTOR
    Output Logic SOURCE
    Rated Load Voltage (VDC) 24
    Wiring SPRING CLAMP
    Int. Current Consumption (A) 0,02
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 111,5
    Weight (kg) 0,16
    Width (mm) 23
    Height (mm) 100
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 85
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 2
    Wood (g) 0
    Other paper (g) 1
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 71868-10-5, 7439-92-1, 75980-60-8
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
