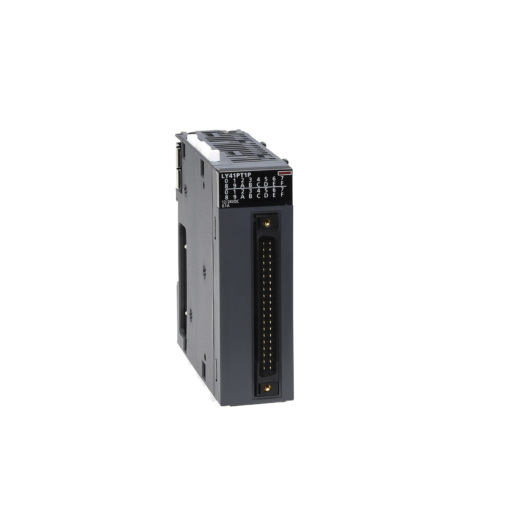

Material number 242169
SPS, L-Serie Output Module; 12-24 VDC; 32 Outputs; source 0,1A; A6CON
| Series | MELSEC-L SERIES |
|---|---|
| Type | TRANSISTOR OUTPUT (SOURCE) |
| Power Supply (V) | 12-24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 32 |
| Integrated Digital Outputs | 32 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Rated Load Voltage (VDC) | 24 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,14 |
| Depth (mm) | 95 |
|---|---|
| Weight (kg) | 0,11 |
| Width (mm) | 28,5 |
| Height (mm) | 90 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 34 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 13 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 119313-12-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
