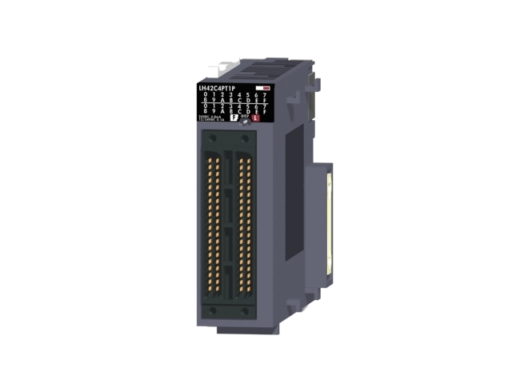

    269672-LH42C4PT1P

    269672 - LH42C4PT1P

    Material number 269672

    SPS,L-Series I/O Module;32 In/32 Outputs;Transist.;24VDC In/12-24VDC Out;Source

    Request for Quote Add to List
    FA-MOD PLC: DIGITAL I/O MODULE
    Series MELSEC-L SERIES
    Type I/O COMBINED MODULE
    Power Supply (V) 24
    Current Type DC
    Occupied I/O Points on PLC 32
    Integrated Digital Outputs 32
    Rated Load Voltage (VDC) 12-24
    Output Type TRANSISTOR
    Output Logic SOURCE
    Wiring CONNECTOR
    Int. Current Consumption (A) 0,15
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 95
    Weight (kg) 0,12
    Width (mm) 28,5
    Height (mm) 90
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 43
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 18
    Wood (g) 0
    Other paper (g) 1
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 108-78-1, 7439-92-1, 96-13-9, 119313-12-1
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
