Material number 246349

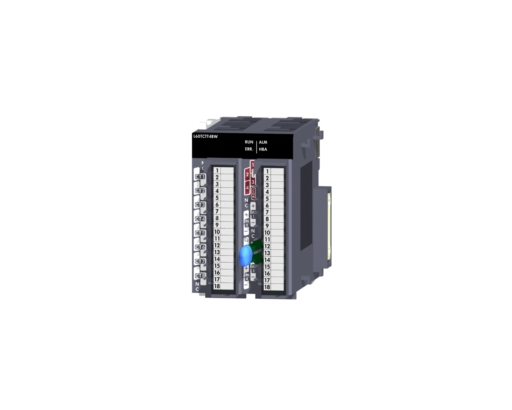

SPS, L-Serie Thermocoupler Module;4 channels;Transistor Output;sensor monitoring
| Series | MELSEC-L SERIES |
|---|---|
| Type | TEMPERATURE CONTROL |
| Occupied I/O Points on PLC | 16 |
| Integrated Analogue Inputs | 4 |
| Input Type | THERMOCOUPLE |
| Applicable Thermocouple Type | K, J, E, B, L, N, PLII, R, U, T, S |
| Int. Current Consumption (A) | 0,33 |
| Depth (mm) | 117 |
|---|---|
| Weight (kg) | 0,33 |
| Width (mm) | 57 |
| Height (mm) | 90 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 115 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 335 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 1317-36-8, 7439-92-1, 1303-86-2 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
