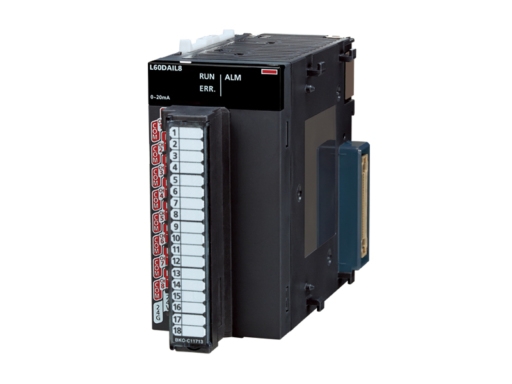

Material number 304545
PLC, L series Output module; 8 channel analogue channel output
| Series | MELSEC-L SERIES |
|---|---|
| Type | ANALOG OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 16 |
| Integrated Analogue Outputs | 8 |
| Output Current Range (mA) | 0-20; 4-20 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,25 |
| Depth (mm) | 117 |
|---|---|
| Weight (kg) | 0,22 |
| Width (mm) | 45 |
| Height (mm) | 98 (106) |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 53 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 18 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 119313-12-1, 108-78-1, 7439-92-1, 80-05-7, 80-43-3, 96-13-9 |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
