Material number 279071

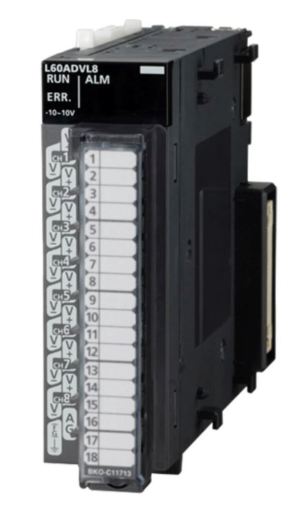

PLC L-Series 8 channels analog input, Analog-digital conversion (voltage) module
| Series | MELSEC-L SERIES |
|---|---|
| Type | ANALOG INPUT |
| Occupied I/O Points on PLC | 16 |
| Integrated Analogue Inputs | 8 |
| Input Voltage Range (V) | -10-10; 0-10; 0-5; 1-5 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,2 |
| Depth (mm) | 117 |
|---|---|
| Weight (kg) | 0,19 |
| Width (mm) | 28,5 |
| Height (mm) | 90 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 43 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 18 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 119313-12-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
